A garage door opener that pops, smokes, or hums without moving may have a failed motor capacitor. Those symptoms can also come from other electrical or mechanical problems, so they don’t identify the failed part by themselves. An opener that still runs can have a damaged capacitor, too.
On a garage door opener repair in Tyler, TX, we found exactly that: an opener that still operated after a pop and smoke, with a visibly blown capacitor inside.
If your opener is smoking or smells burnt, stop using it. Disconnect power only if you can safely do so, and have it inspected before using it again. If there is fire or ongoing heavy smoke, leave the area and call 911.
In this article
What happened on this Tyler garage door opener repair?
The homeowner reported that the opener had popped and started smoking. When we inspected it, the opener was still operating.

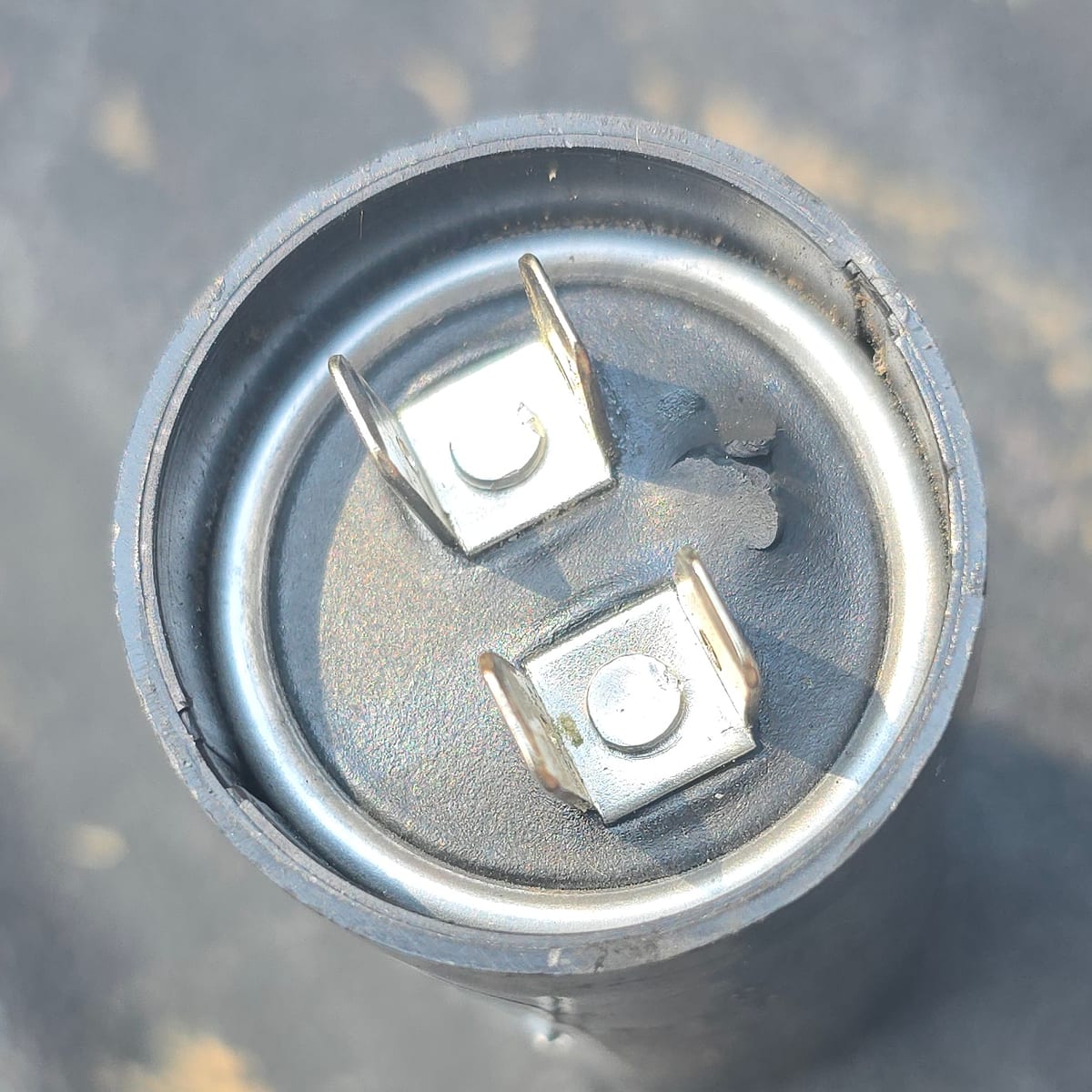

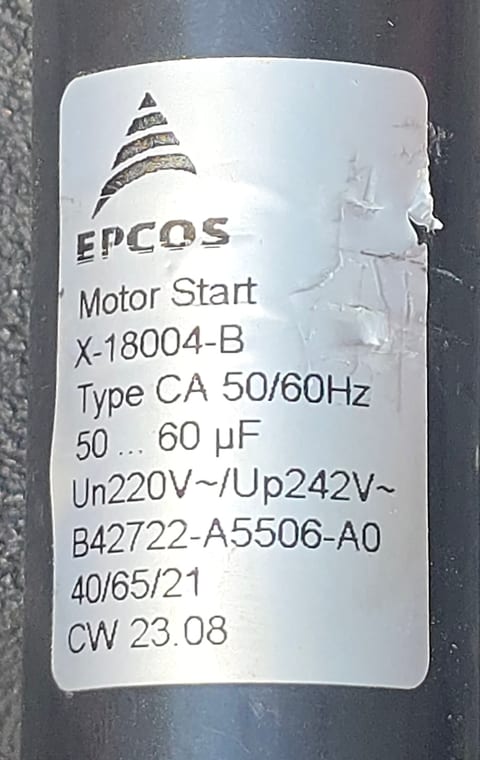

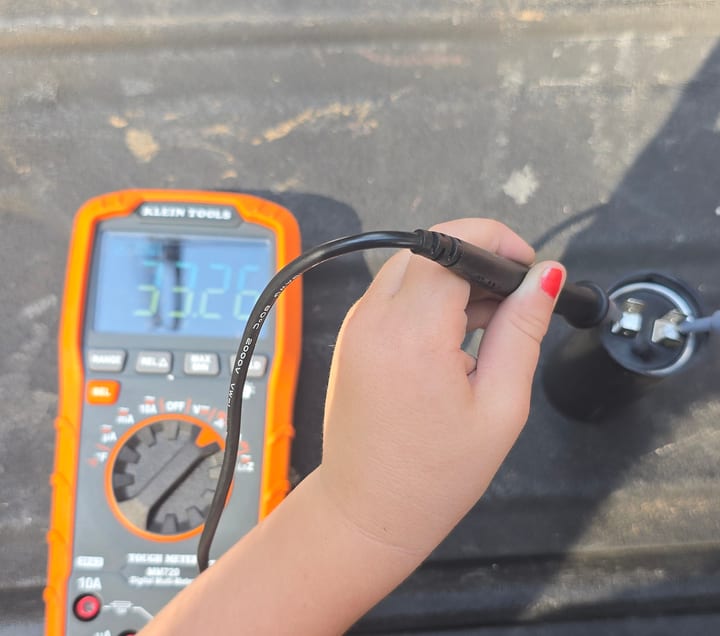

Inside the unit, the motor capacitor had a visible hole blown through its top. Its label showed a rating of 50–60 µF and 220 VAC. Our test measured just 33.2 µF, below the labeled range.

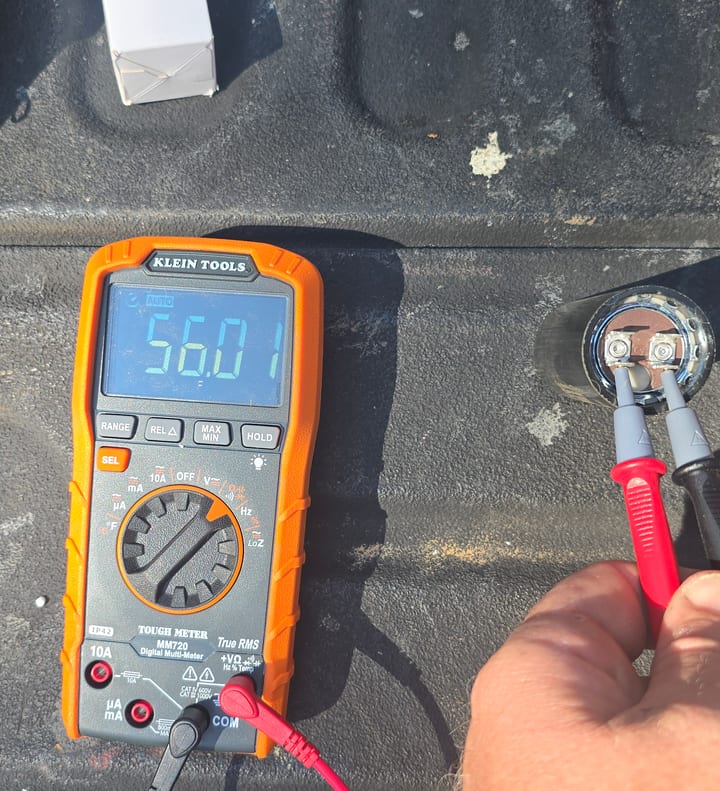

We tested the replacement at approximately 56.0 µF, installed it, and verified proper opener operation.
| What we checked | Result |
|---|---|
| Reported problem | A pop followed by smoke |
| Opener when inspected | Still operating |
| Visible capacitor damage | Hole blown through the top |
| Original capacitor rating | 50–60 µF, 220 VAC |
| Failed capacitor reading | 33.2 µF |
| Replacement reading | Approximately 56.0 µF |
| Repair outcome | Proper operation verified after replacement |
The numbers describe this particular repair. They are not universal specifications for every garage door opener.
What does a garage door opener capacitor do?
In an opener that uses this type of motor capacitor, the component helps the motor start. If it fails, the motor may hum or have trouble getting moving.
The capacitor isn’t a backup battery, and replacing it doesn’t correct a broken spring or a binding door. The door’s spring system counterbalances the door, so the condition of the entire system matters.
Opener designs vary. Don’t assume every opener uses the same capacitor or that a part is compatible because it looks similar. Manufacturers list replacements for specific models; for example, Genie’s replacement capacitor catalog includes different ratings and part numbers.
What are the symptoms of a bad garage door opener capacitor?
Possible signs include:
- A pop from the opener, sometimes followed by smoke or a burnt smell.
- A motor that hums but doesn’t move the door.
- Trouble starting the motor.
- A capacitor with swelling, leakage, cracking, or a ruptured case, found during an internal inspection.
These are clues, not a diagnosis. A humming opener can have other problems, and smoke can come from wiring, a motor, or a circuit board. Chamberlain Group’s guide to an opener that hums without moving includes checking for capacitor damage among its troubleshooting guidance.
If your opener behaves erratically, our garage door logic board guide explains another possible source of trouble. Neither guide can tell you which part failed without an inspection.
Can the opener still work with a bad capacitor?
Yes, it can in some cases. The opener on this Tyler service call was still operating even though the capacitor had visible damage and tested below its labeled range.
That does not mean it was okay to keep using it. Door movement alone doesn’t prove that the opener’s electrical components are in good condition. A pop, smoke, or burnt smell needs attention even if the next press of the button moves the door.
How is a failed capacitor diagnosed?
A technician checks the component’s condition and compares its test result with the correct specifications for that opener. On this job, the physical damage and the below-range reading both supported replacing the capacitor.
The symbol µF means microfarads, the unit used to measure capacitance. You don’t need to memorize the numbers; the useful point is that our failed part measured below its own labeled range, while the replacement measured within it.
The correct replacement depends on the opener’s requirements, not just a meter reading. Testing and handling internal components should be left to someone qualified to do the work. Capacitors can retain electrical charge after power is disconnected.
Should you replace the capacitor or the entire opener?
Replacing the capacitor may make sense when it is the failed component, the correct replacement is available, and the rest of the opener is serviceable. That’s what worked on this repair.
Replacing the opener may be the better choice when there are multiple problems, significant additional damage, unavailable parts, or repair costs that don’t make sense for the unit’s condition.
The decision should follow an inspection. A blown capacitor alone doesn’t automatically mean you need a new opener.
For a broader comparison, read when repairing or replacing an older garage door opener makes sense.
How much does garage door opener capacitor replacement cost?
The installed cost depends on the opener model, the correct part, diagnostic work, labor, and whether anything else is damaged. An online parts price is not the full cost of an installed repair.
StraightShot Overhead will inspect the problem and explain the repair or replacement options and pricing before work begins. This case study does not establish a fixed price for every capacitor repair.
What if the replacement capacitor fails again?
A repeat failure calls for another diagnosis. The technician should verify the replacement part and investigate the opener and door system rather than assume another capacitor will solve the problem.
If the door is binding or poorly balanced, that issue also needs attention. Our garage door maintenance guide explains warning signs homeowners can watch for without opening the motor housing.
Garage door opener repair in Tyler, TX
If your opener popped, smoked, or started humming without moving the door, StraightShot Overhead can help identify the cause and explain your options.
We provide residential garage door service in Tyler and nearby communities, including Flint, Bullard, Whitehouse, and Noonday. On this job, replacing a failed component restored proper operation without replacing the entire opener.
Need help with your opener? Request garage door service in Tyler.
Common questions
-
Does smoke mean the entire garage door opener is ruined?
Not necessarily. Smoke means something needs immediate attention, but an inspection determines the extent of the damage. In the repair described here, we replaced the failed capacitor and verified proper operation.
-
Is a capacitor the same as a garage door opener battery?
No. A motor capacitor helps the motor operate; a backup battery provides power during an outage on compatible openers. They have different jobs and are not interchangeable.
-
Can I replace the capacitor myself?
Internal electrical repairs involve shock hazards, stored charge, and model-specific parts. Have a qualified technician diagnose the problem and select the correct replacement. This article describes a service call, not a DIY repair procedure.
